Sioux Squeeze Chutes

Features:

Comes standard with Self Catch Head gate.  Head gate is adjustable for cows and calves.  Unique return latch to reset the head gate after the animal has left the chute to catch the next animal in line.  Manual Head gate option is another available option.

Both sides open all of the way and have slam latched designed panels. Features one of the largest injection doors on the market. Progressive bar will slide up as the animal moves forward.

The back tailgate folds on itself and gets completely out of the way. Drop down doors have blinders on them to keep the animal focused. Drop down doors on the side go all the way down.

Foot pedal opening on palp door release giving operators a hands free opening.

Controls can be mounted and run from either side depending on your operation. Lower side doors do not have to be removed and taken out when nursing a calf. Squeeze lever swings away allowing the side of the chute to open even when squeezed



Specifications:
84” tall x 38” wide x 12’ long
9’ squeeze chute
3’ palpation cage
29” inside width (squeezes down to 12”)
52 grease zerks

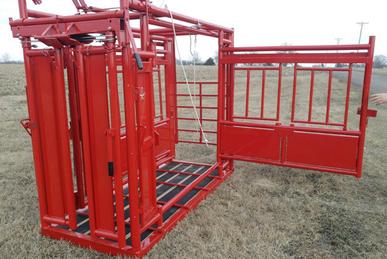

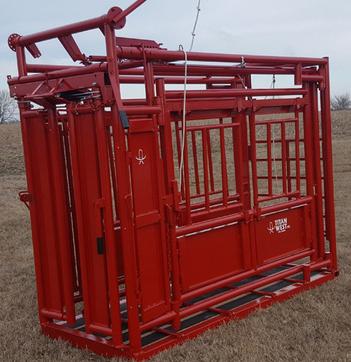

Titan West Manual Chute

Dual Side Escape Doors

 Titan West Manual Chute with Palpation Cage

Sioux Head/Nose Bars



Titan Working Chutes are designed to handle some of the largest breeds, yet versatile enough to accommodate small calves. Both the Standard & Combo/AI chute models, have a Manual Headgate or Self-Catch Headgate option. In addition, both chutes feature a double-squeeze action that firmly latches and gently holds the animal. Finally, both sides feature a side escape, as well as bottom width adjustment from 12" to 30". All Controls are easily reversible from left to right for each operating location.


The Standard Model is one of the strongest working chutes available today. It is heavy duty, all steel unit, built to take abuse. The frame is built with 2 inch square, high tensile, strength steel tubing with all stress points reinforced for added strength and durability. A unique Rumber Floor with a 5-year warranty adds durability and a more quiet operation for less stress on the animals and operator. An optional grated floor with cleats every 12 inches provide extra traction.







       Crowd Ahead Bar         Fold Down Foot Door & Chest Rest     Self-Catch Headgate

The Combo/AI model features all that the standard offers except it features an additional palpation cage with a common floor. The palpation cage is accessible form both sides and is adjustable in width. The cage will attach directly to the Titan West's Circular System. A standard feature for both models is a unique, manually operated crowd ahead bar that allows the operator to encourage animals to continue moving through the chute and prevents the animals from backing out of the chute into the alley way.

Also a standard feature on both models is a removable chest rest that mounts on the floor of the chute, near the front of the chute, which prevents the cows from kneeling down in the chute or small calves from laying down. Each Chute has a dropgate at the entry of the chute that is locked down when working to prevent cows waiting in the alley from opening the gate. The dropgate can also be locked up in two different heights for ease of loading the chute.  Optional split tailgate is also available as a standard feature.












  Manual Neck Extender Option (Only Available with Manual Headgate)           Bi-Fold Foot Door Option


Optional Features:
-Manual Neck Extender      - Portable Attachment       -Scales        -Bi- Fold Foot Doors

- Grated Floor     -Chute Louvers         - Grooming Bars        - Horizontal Slidegate



Sioux Chute with Manual Headgate

Dual Sided Swing Out Foot Doors

Manual Squeeze Chutes
