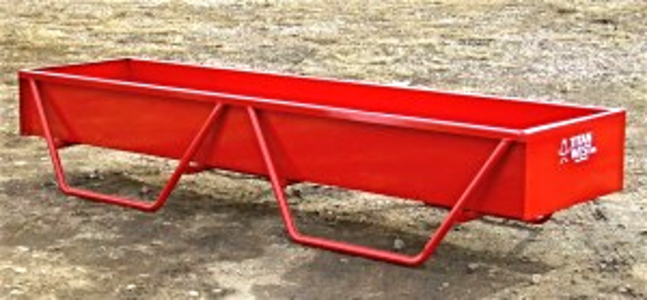

Bunk Feeders

Available sizes:

13.5″ (H) x 28″ (W) x 10′ (L)
8″ (H) x 28″ (W) x 10′ (L)


Corrosion resistant galvanneal steel construction, 14 ga. Tubing, 16 ga. Sheet

Convert an existing Round Bale Feeder with the Bextra Basket Insert.  Bolts inside your current round bale feeder for added savings.

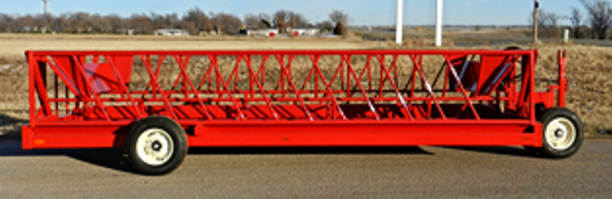

Hay & Grain Feeder

Strongest, Most Versatile Feeder Around

This revolutionary feeder hydraulically dumps the trailer floor on each side for trouble-free cleanout, making it faster and easier than any other feeder on the market. Powered by your tractor or hydraulic truck bed, the EZMT also enables you to adjust the width of the trailer to accommodate both cows and calves, while allowing you to use the same feeder with a range of different-sized animals. Both Sides Dump For Easy Empty. Includes a Spring-Loaded Telescoping Hitch.

Specifications:
Available in 20' & 26' long
12-Guage Galvaneal
Floor Pan
4x6 Square Frame
32 Feed Openings


EZMT Feeder

Bale Feeders

Features:
15" Tires NEW!
Valve Stem Guards
Sliding Tongue Extension
Reinforced Feeder Pan
Hydraulic Floor Dump
Hydraulic Width Adjust
5’6”– 7’ Width Adjustment

Perfect for dairy or cattle operations and pasture feeding.
Feed, mineral, grain or silage with your loose, large, round or square hay bales.

Designed and built so that hay that falls past the first layer of bars falls down onto the feeding pan, keeping it in the feeder. This is attained by the inner rows of bars. A V-type center pushes feed to the outside of the feeder where livestock can reach it, but the second set of bars keeps it contained. Savings of 1/4 to 1/2 of hay bale.

The frame is built entirely of square tubing and angle iron to give it strength. The feed pan withstands abuse as well as weather. The all welded design is built to last a lifetime.


Gauge:             2" x 16
Diagonal:         10.3'

Length:            78"
Height:             72"
Width:              96"

Notes:
Hi-tensile, 50,000 psi steel tubing and powder coated. Pan is made of 18 gauge cold rolled steel with 2 1/2” x 2 1/2” x 1/4” hot rolled angles. All welded design.

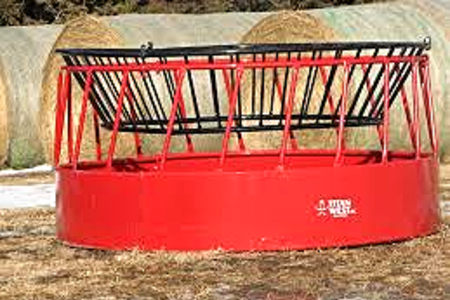

Bextra Basket

Cattleman across the country recognize the most costly practice associated with raising beef cattle is feeding stockpiles forages.  Extra feed savings can be obtained with the Bextra West Bale Feeder in addition it comes with a 5-year warranty.

The Bextra West Bale Feeder was designed by Trevor Lienemann, Owner & Operator of Lienemann Cattle Co.  After multiple years of development & field trials, they are now readily available.

Hay savings are up to 70% over conventional feeders & consistent with more costly & cumbersome cone feeders.  Guaranteed for 5 years that your animal won’t tear it up.  It’s unique design has the cattle eat from the bottom of the feeder in their natural grazing position.  It has indented uprights balance the bale n the the middle for minimal waste.  The feeder is manufactured with heavy duty 14 Ga. 1 1/2” galvaneal round tubing for extra strength & 18 Ga. galvaneal to prolong the life.  Heavy duty and made so there is no need for cattle to push on feeder.

Additional Features:
- Bottom & Balanced Feeding Equals Extra Dollar Savings
- Maximize Your Feed Dollars by Minimizing Your Feed Loss
- Convenience for All Feeding Applications
- Concept Engineered, Designed & Manufactured for Long Product Life
- Great for Adult and Young Cattle
- Performs Like a Cone Feeder w/ Less Cost and Maintenance

- Available for Round or Square Bales
